Documentation Generation

After this page, you will be able to generate useful HTML docs on a machine that cannot create a Spark session. You will also know how to backfill real table columns from a Spark environment.

bolt generate documentation always writes outputs/schema/schema.py. That helper script is the bridge between your local docs run and a remote Spark runtime.

The Spark free schema flow

Follow these four steps in order.

Generate the documentation once on your local machine.


bolt generate documentation

Creates static HTML documentation and a schema helper script:

Main page: ./outputs/documentation/index.html
Table pages: ./outputs/documentation/tables/*.html
Schema helper: ./outputs/schema/schema.py

schema.py is always emitted. If Spark is unavailable locally, run schema.py in a Spark environment, save the resulting schema.csv to ./outputs/schema/schema.csv, and run bolt generate documentation again.

Real output from sample_project:

Generated HTML documentation index page showing the project title, layer cards, and generated table links.

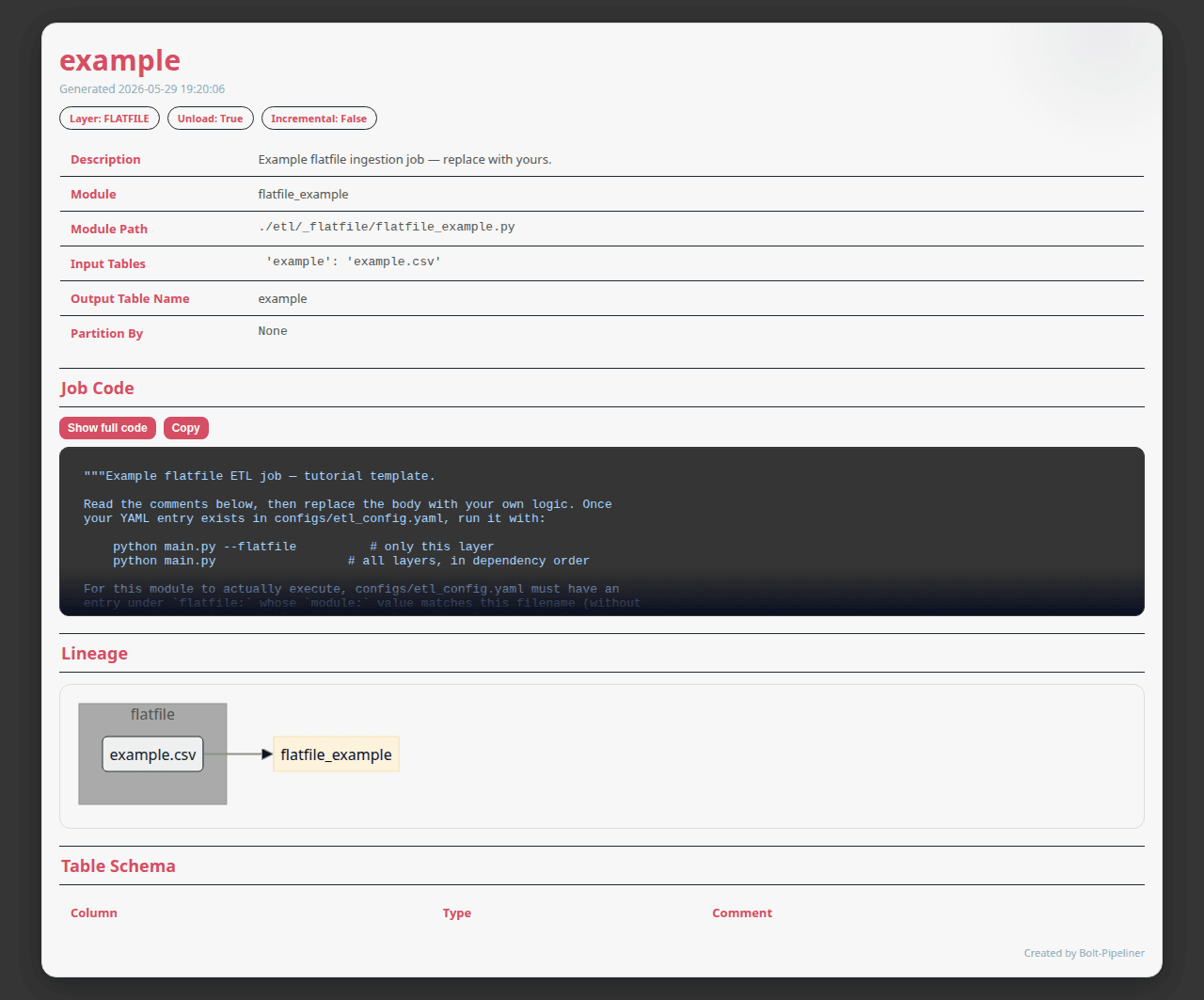

Generated table documentation page for flatfile_example showing table details and a Mermaid lineage graph.

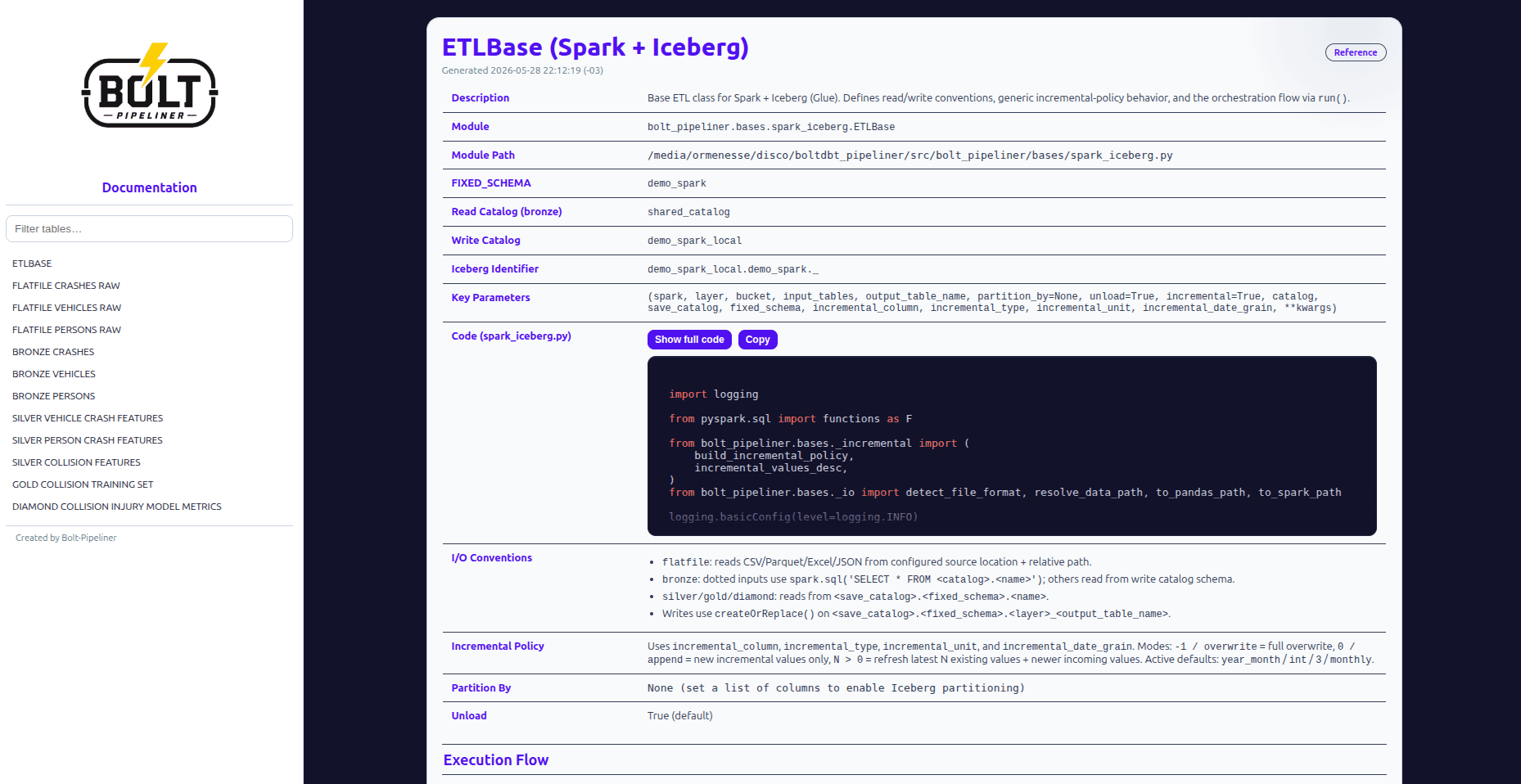

Generated table documentation page example.

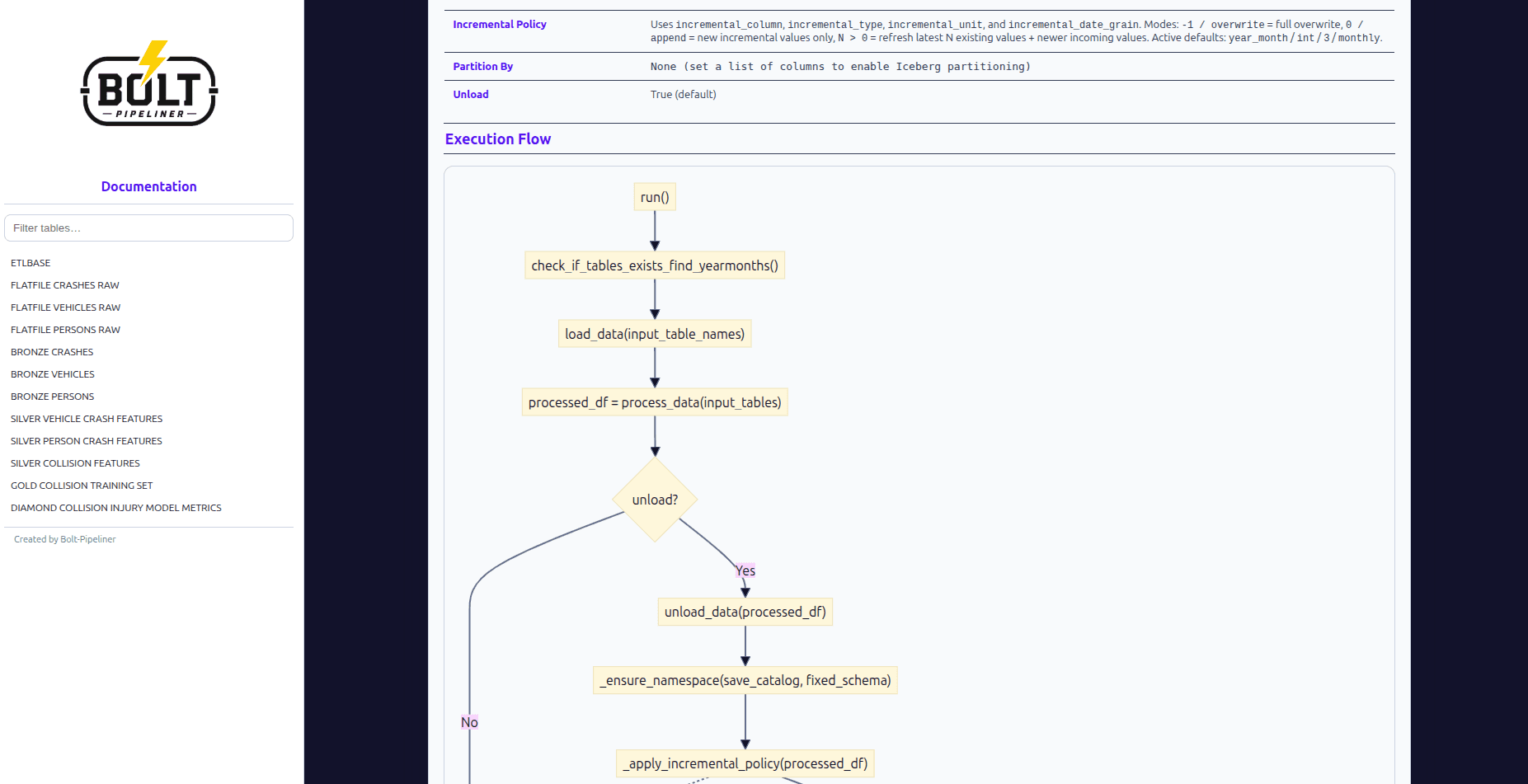

Generated table documentation page example 2.

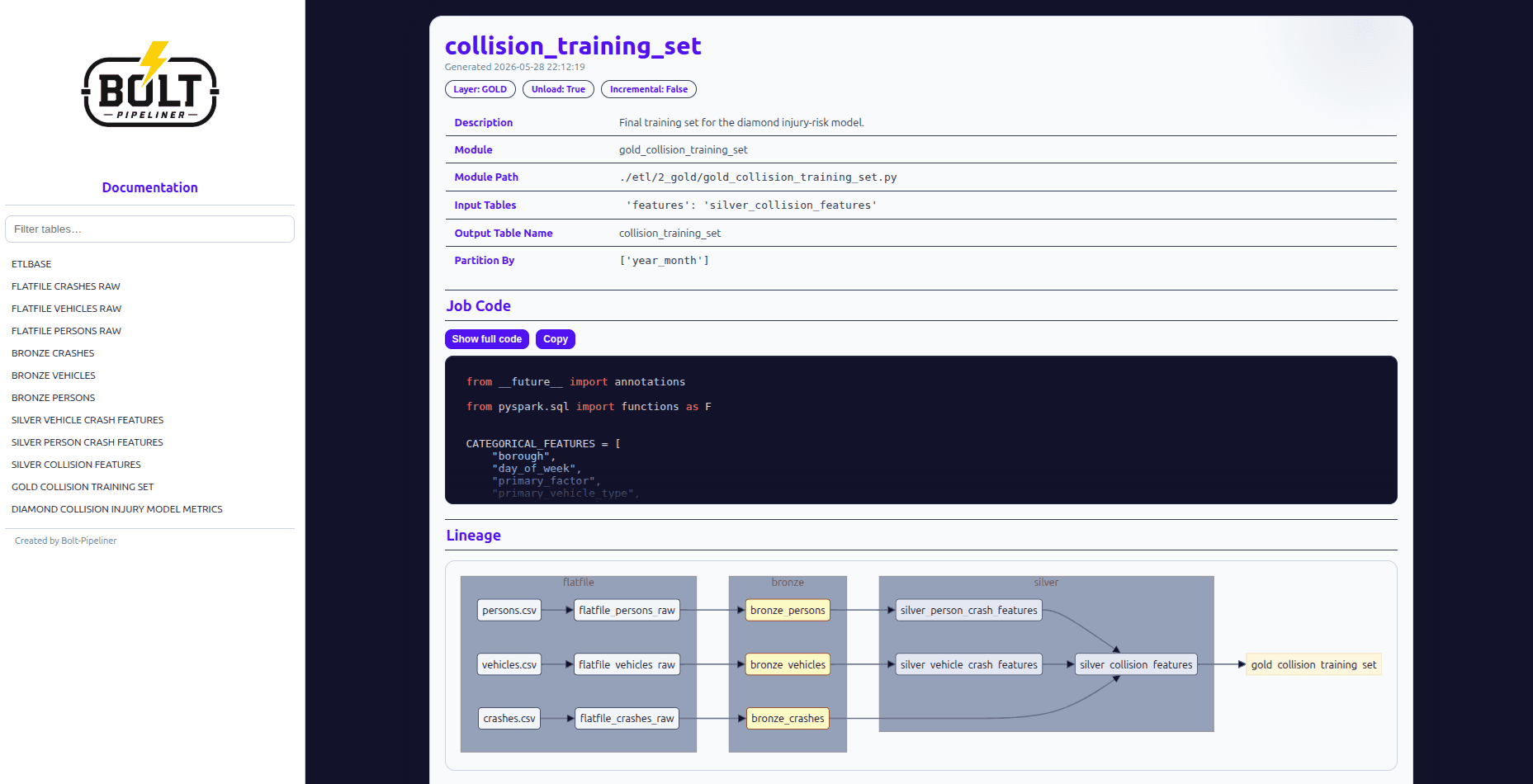

Generated table documentation page example 3.

If Spark is unavailable locally, Bolt still generates HTML files and writes outputs/schema/schema.py.

Run outputs/schema/schema.py in an environment where Spark can query your catalog tables.

The script prints CSV content to stdout. It also prints the target path, which is ./outputs/schema/schema.csv.

Save that printed CSV output as outputs/schema/schema.csv in your project.

You need these columns in the file:

table_name
col_name
data_type
comment

Regenerate documentation so Bolt can read schema.csv and inject real columns into table pages.


bolt generate documentation

After the second run, pages under outputs/documentation/tables/ include real schema rows instead of empty placeholders.

Why this works

The documentation generator tries to create a Spark session first. If that fails, it falls back to reading outputs/schema/schema.csv. This lets you keep documentation work local while collecting schema metadata from a separate Spark environment.
